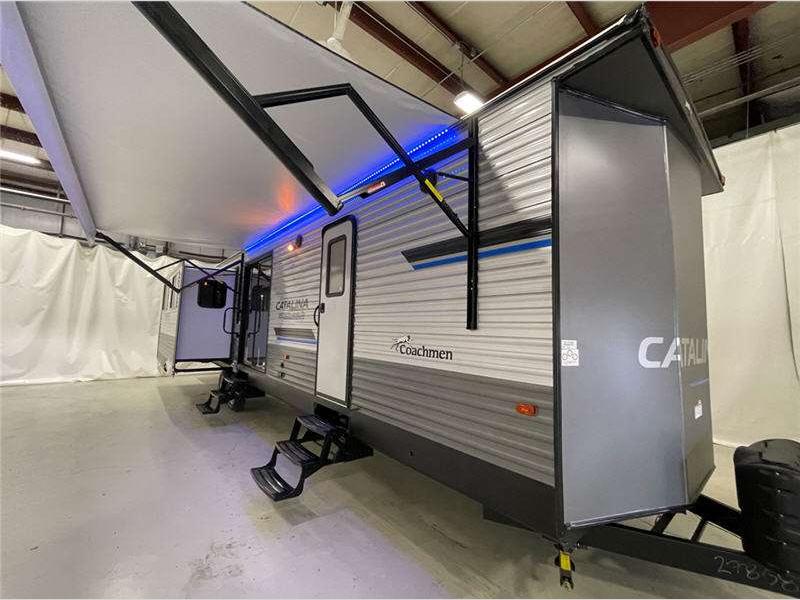

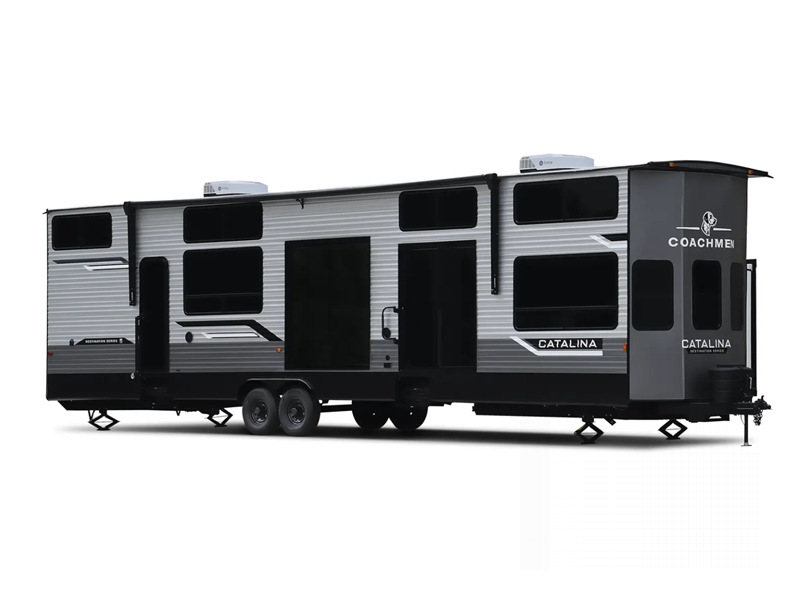

Coachmen RV Catalina Destination Series Destination Trailer

Previous
Next
1 of 21
The Catalina Destination Series by Coachmen is the perfect extended stay destination trailer for all of your vacation getaways.

The destination trailers are built for extended stay travelers with a cambered structural steel l-beam frame, fully decked walk-on roof, residential in-floor ducted heat, large bay front windows, a 7 foot ceiling height, and a marine toilet to name a few of the standard features.

So, for Coachmen quality, style and comfort in a familiar name, choose a new Catalina Destination Series destination trailer by Coachmen for your next "stay vacation".
  • Catalina Destination Series 39FKTS

    Catalina Destination Series 39FKTS Floorplan Image

    Enjoy camping with family and friends in this Catalina Destination Series ... more about Catalina Destination Series 39FKTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Hitch Weight 1110 lbs
    Gross Weight 11000 lbs
    Dry Weight 9540 lbs
    Cargo Weight 1460 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    TV Info LR 32" TV
    Awning Info 21
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Catalina Destination Series 39MKTS

    Catalina Destination Series 39MKTS Floorplan Image

    This Catalina Destination Series destination trailer by Coachmen provides ... more about Catalina Destination Series 39MKTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Hitch Weight 1330 lbs
    Gross Weight 11000 lbs
    Dry Weight 9410 lbs
    Cargo Weight 1590 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 30 gals
    Furnace BTU 30000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    TV Info LR 32" TV
    Awning Info 15'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Catalina Destination Series 39RLTS

    Catalina Destination Series 39RLTS Floorplan Image

    Make this Catalina Destination Series destination trailer by Coachmen your new ... more about Catalina Destination Series 39RLTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Hitch Weight 1494 lbs
    Gross Weight 11000 lbs
    Dry Weight 9762 lbs
    Cargo Weight 1238 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 30 gals
    Furnace BTU 35000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    TV Info LR 32" TV
    Awning Info 18'
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Catalina Destination Series 40BHTS

    Catalina Destination Series 40BHTS Floorplan Image

    There is no doubt you will have fun camping for a weekend or more in this ... more about Catalina Destination Series 40BHTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Hitch Weight 1130 lbs
    Gross Weight 11000 lbs
    Dry Weight 9670 lbs
    Cargo Weight 1330 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    TV Info LR 32" TV
    Awning Info 21'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Catalina Destination Series 40FKDS

    Catalina Destination Series 40FKDS Floorplan Image

    Make this Catalina Destination Series destination trailer by Coachmen your new ... more about Catalina Destination Series 40FKDS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 40 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Hitch Weight 1138 lbs
    Gross Weight 11000 lbs
    Dry Weight 9062 lbs
    Cargo Weight 1938 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 30 gals
    Furnace BTU 30000 btu
    Available Beds King
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    TV Info LR 32" TV
    Awning Info 21'
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Catalina Destination Series 40TSHB

    Catalina Destination Series 40TSHB Floorplan Image

    One and a half baths makes this Coachmen Catalina Destination Series destination ... more about Catalina Destination Series 40TSHB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 8 in
    Int Height 7 ft
    Hitch Weight 1190 lbs
    Gross Weight 11000 lbs
    Dry Weight 9740 lbs
    Cargo Weight 1260 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 80 gals
    Black Water Capacity 70 gals
    Furnace BTU 30000 btu
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Residential
    Cooktop Burners 3
    Shower Size 48" x 30" in
    Number of Awnings 1
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 10 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 15000 btu
    TV Info LR 32" TV
    Awning Info 21'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

Catalina Destination Series Features:

Standard Features (2018)

Exterior
  • Cambered structural steel I-beam frame
  • 3/8” Fully decked walk-on roof
  • 2” X 3” longitudinal floor joists on approximately 12” centers
  • Residential in-floor ducted heat
  • 84” Ceiling height destination trailers
  • One-piece, seamless, rubber roof material with 12 year warranty
  • Easy-Trac electric slide out(s)
  • Wall studs on 16” centers
  • 1/2” Plywood dinette, bed and bunk platforms
  • Roof rafters, constructed of residential-style tapered 5” trusses
  • 5/8” Tongue & groove plywood floor decking
  • R-7 fiberglass insulation in sidewall, roof & floor
  • .024” Aluminum exterior skin with .030 Skirt metal
  • Dark tinted (G-20) black framed windows w/safety glass
  • Swing arm entry assist handle at main entry
  • Radius entry steps
  • Superlube™ easy maintenance axles
  • Sliver e-coat wheels
  • Painted bumper w/drain hose carrier and end caps
  • Radius-cornered fiberglass entrance door
  • Painted bottom radius skirting
  • Amber patio light w/inside switch
  • Baggage doors are lockable and radius-cornered
  • Grab handle at second entry (per floorplan)
  • Rain guttering, molded w/drip spouts
  • Polished aluminum fender skirts
  • Large bay front windows
  • Blue LED under carriage lighting
  • Stabilizer jacks (4)
  • TV antenna w/cable interior/exterior hook-ups
Interior
  • Grace Cherry interior wood
  • Residential furniture
  • TV antenna with signal booster
  • Cable hook-up with RG-6 coax cabling
  • Valance and decorative curtains
  • Solid doors throughout all units
  • Large dinette tabletop
  • Night shades in living area and bedroom
  • Single piece thermofoil countertop with waterfall edge

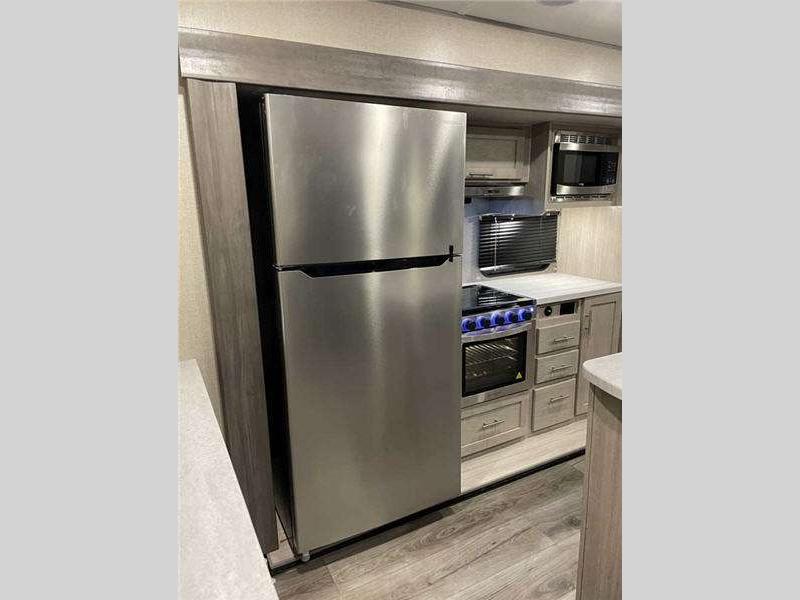

  • Full-sized residential refrigerator
  • 3-Burner range w/ 9,000 BTU Superburner™
  • Convenient breakfast bar in all models
  • Kitchen drawers with full extension metal ball bearing drawer guides
  • Easy-view extra large picture window at dinette
  • Residential style lighting above dinette w/ wall sconces
  • Silverware drawer
  • Under-bed storage, bed lifts easily on gas struts
  • Designer decorative headboard
  • Skylight above bath and shower
  • Marine toilet with foot flush
  • Large sink in bathroom
  • Medicine cabinet w/ mirror
  • Bathroom power roof vent
  • LED lighting
  • Polished aluminum fender skirts

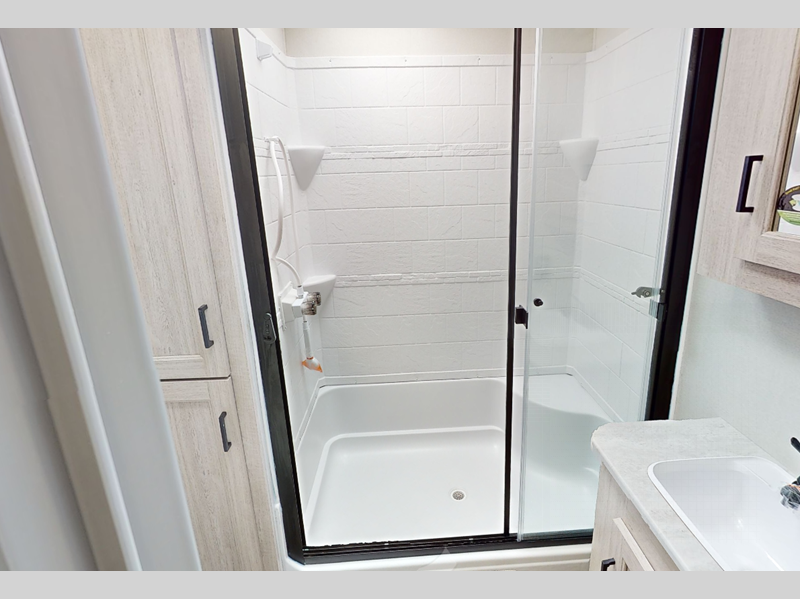

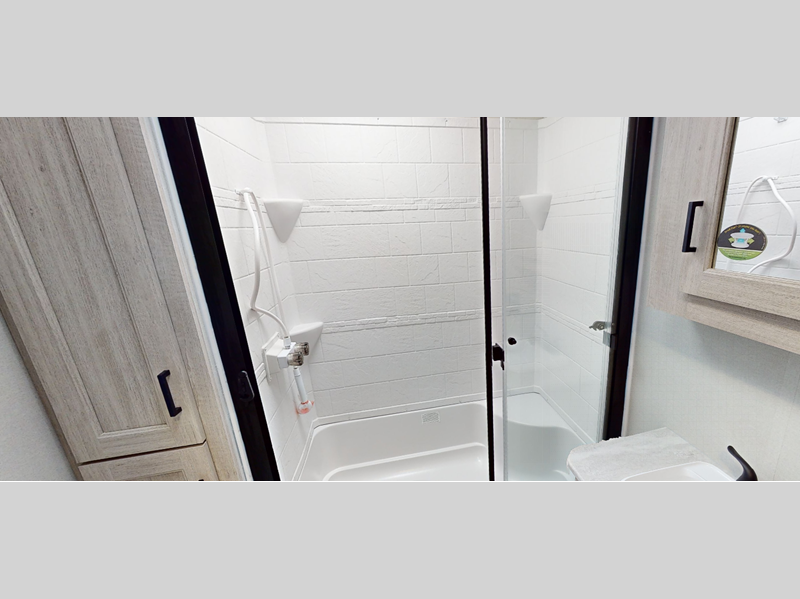

  • Shower with glass doors
  • Congoleum woodplank linoleum flooring

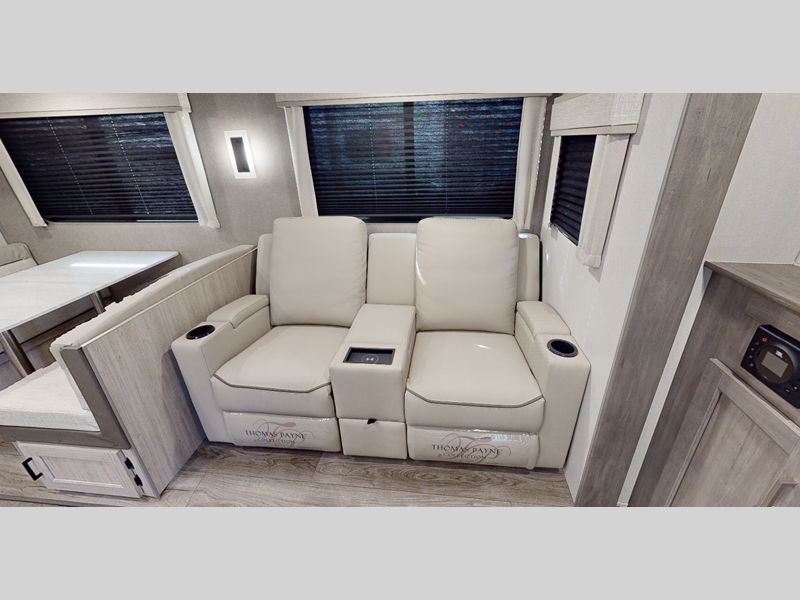

  • Recliner lounge chairs (per floorplan)
Standard Heat, Water and Power Equipment
  • Roto-cast holding tanks
  • 110V G.F.C.I. Protected exterior receptacle
  • 50-Amp electric service
  • 12V demand water pump
  • Systems monitor panel
  • Hook-up for city water
  • Double 30 Lb. propane gas bottles with regulator
  • Water heater by-pass winterization kit
  • Washer/dryer prep (39MKTS, 39RLTS, 40FKDS)
  • 35K BTU auto-ignition furnace with wall thermostat
Destination Edition Value Package (Free)
  • 15K BTU Ducted A/C
  • Tri-Fold Hide-A-Bed Sofa
  • 32" Flat Screen TV & Bracket in Living Room
  • AM/FM CD Radio w/ DVD

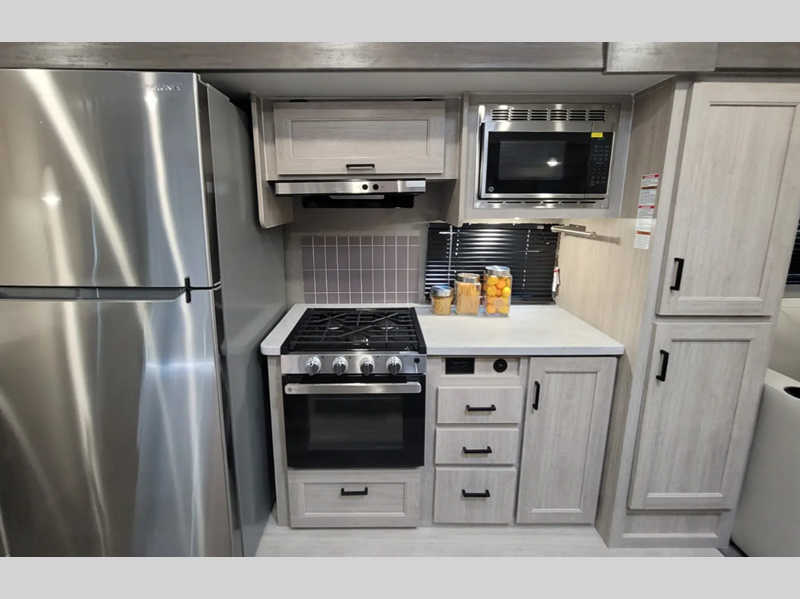

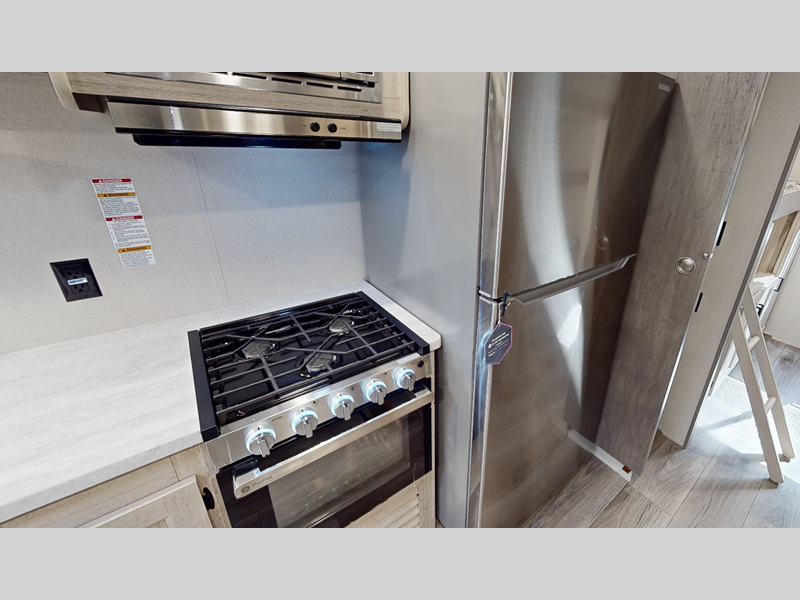

  • Flush Mount 3-Burner Range w/Bi-Fold Glass Range Top
  • Stainless Steel Oven
  • Stainless Steel Range Hood
  • Stainless Steel Microwave
  • Mosaic Tile Backsplash
  • Under Mount Dual Deep Basin Kitchen Sink w/Sink Covers
  • 10 Gallon Gas/Electric DSI Water Heater
  • Glass Step-in Shower w/ABS Surround
  • Serta Sleep System Mattress
  • Kitchen Bar Stools
  • Living Room & Master Bedroom Ceiling Fans w/Wall Switch
  • Marine Grade Exterior Speakers (2)
  • Sport Wheel Package
Additional Options
  • Second 13.5K BTU A/C
  • Enclosed & heated underbelly (Not available with non-self contained option)
  • Remote operated power electric awning w/ LED light
  • Spare tire w/ tire carrier and cover
  • Non-self contained (residential toilet, fresh water tank and pump, direct dump w/ no black or grey tanks)
  • Full size exterior camp kitchen (40BHTS only)

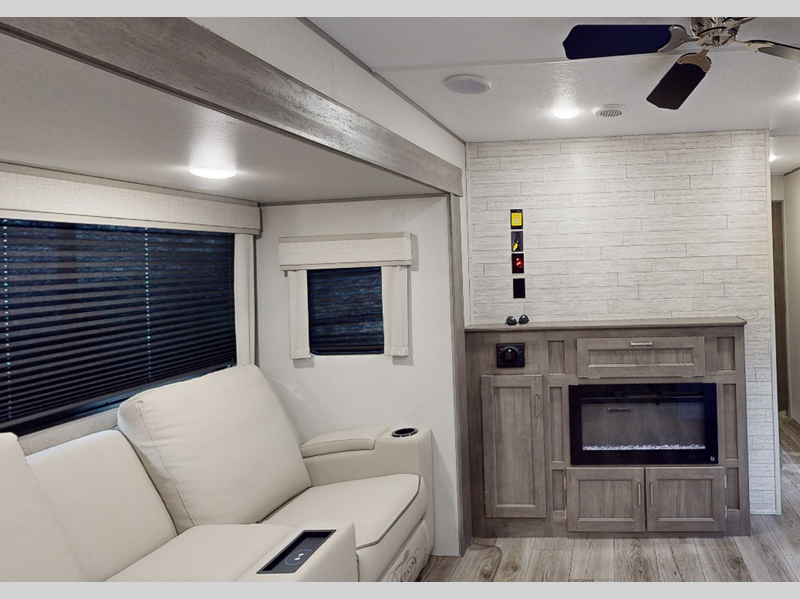

  • Fireplace in living room
  • Detachable hitch
  • Free standing dining table w/ extension and chairs
  • State Seal (Nebraska, Oregon, Washington)
  • Coach-Net Roadside Assistance (One year included for FREE!)



See us for a complete list of features and available options!

All standard features and specifications are subject to change.
